Front machine MF5

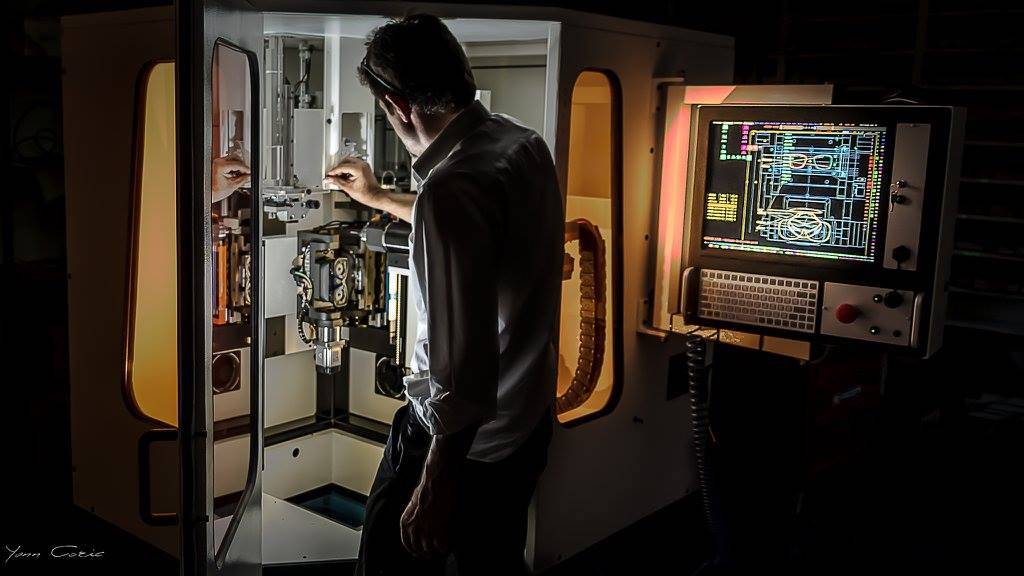

The OAXA-MicroLab MF5 front machine is an automatic 5-axis machine that performs all the operations required to manufacture the front of an acetate spectacle frame.
The operation is automatic, without supervision.

5-axis machining
The OAXA-MicroLab MF5 machine offers exceptional 5-axis simultaneous machining characteristics:

Complexity of machining: Thanks to the highly innovative Lona5 software designed specifically for the eyewear industry, the user has unparalleled creative power to quickly and easily perform complex 5-axis machining that no other system on the market are able to challenge.

Surface finish: the OAXA-MicroLab Corp MF5 machine has the a excellent surface finish for 5-axis machining, probably better than any other solution on the market today.

Precision
CNC machining offers a precision of + or - 0.02 mm with a perfect surface finish.

Flexible
The programming of the MF5 is simplified thanks to the Lona5 software at ''Process Aval''. The machining operations as well as toolings, and even the bending tools are generated automatically and very quickly from the model. The change of model is very fast.

Automatic

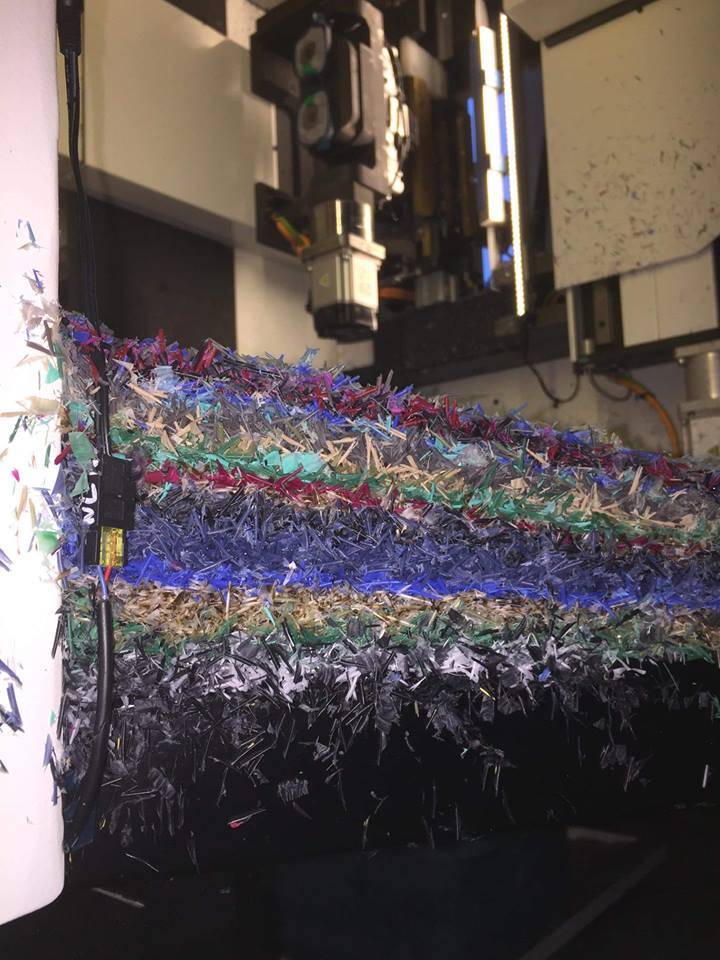

The OAXA-MicroLab MF5 is fully automatic: material feeding, machining, hinge housing machining, and ejection of the finished frame. The machine is designed to work without human supervision.

High-end technical features
High-quality brushless motorization, rapid feed up to 15 m/min

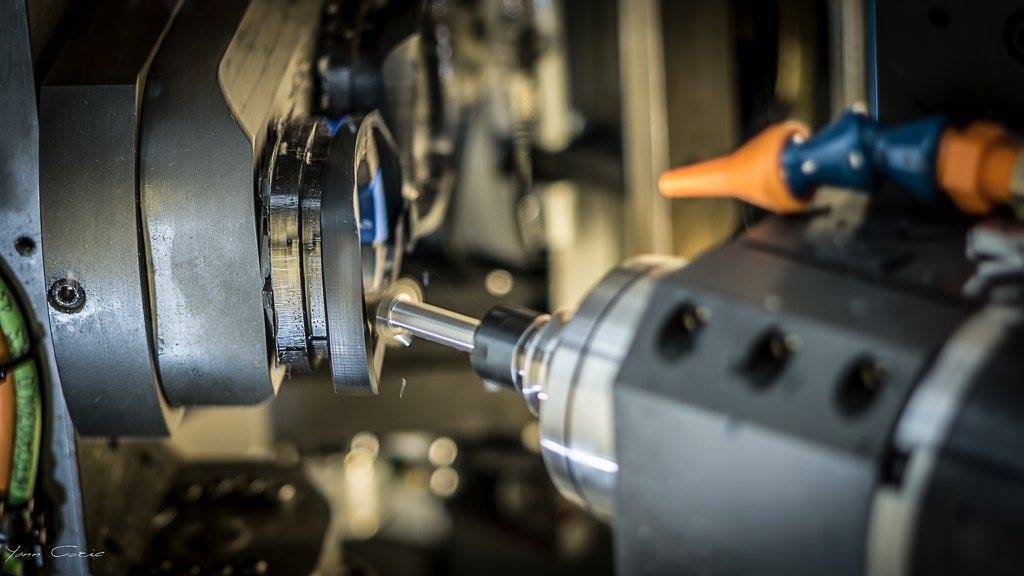

HF spindle with automatic tool changing (10 tools), liquid cooling, frequency converter for an adjustable speed from 5 to 24000 rpm
Linear guides: Three pre-stressed ball bearings per linear axis. Static load capacity: 1350 dN per drive, dynamic load capacity: 833 dN: these are very high-quality machine tool components.
Rotary axes: innovative high performance gearboxes with excellent repeatability.
Precision ball screws with two pre-stressed ball nuts. Load capacity per ball nut: 700 dN
Material feeder: 1200 mm (46 Inches) i.e. 200 chips of 6 mm thickness. Possibility to feed chips with glued cleat up to 19mm thickness.
Machine dimensions: 47x47x71 - Weight: 1600 Lbs
Power supply: electric: 380 V three-phase or 220V split phases. Dry air 85 PSI

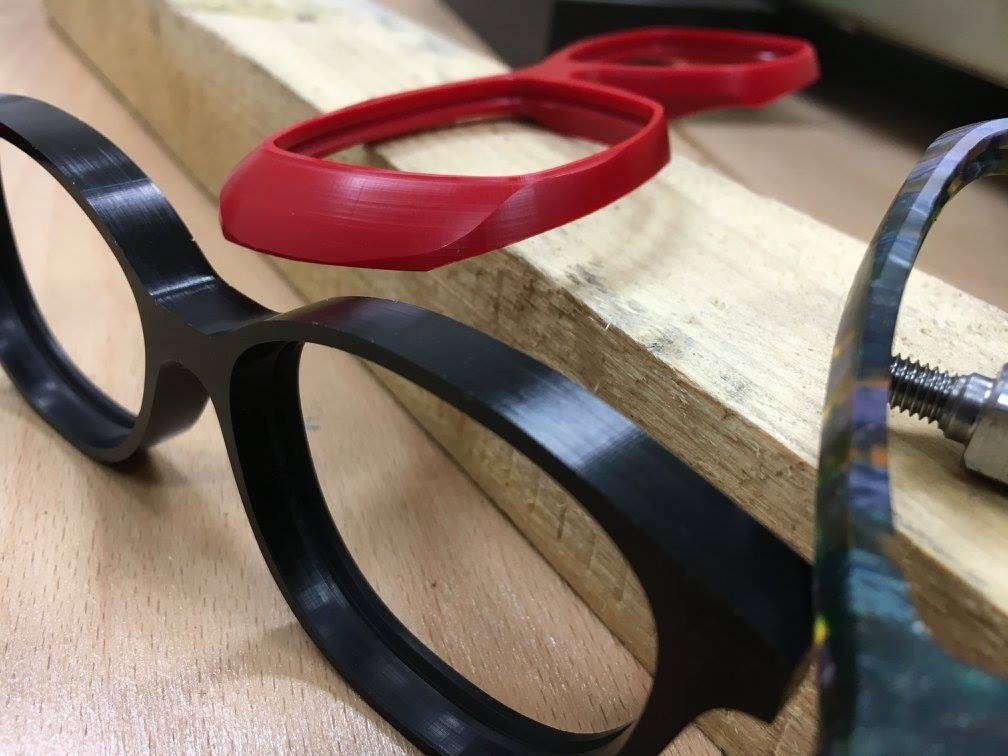

To manufacture high quality frames
Width up to 80 mm
Thickness: 3 to 10 mm (or 19 mm with glued cleats)
Length: 100 to 210 mm
Manufacturing capacity: depends on the complexity of the model. 10 to 20 pieces / hour
Type of material: all types of acetate. Natural materials (wood, horn),
Precision in repeatability: 0.02 mm
Maximum number of tools: 10 with automatic tool change and adjustable speed from 5 to 24000 rpm
CNC programming with Lona4 software: machining operations are generated automatically from the design without prior machining definition operations or software changes. The model file is copied from the design station and then introduced directly into the machine using a USB stick
Integrated design software: yes
Training, delivery, start-up

Standards and safety
✔ Complies with the 2006/42/EC and 2004/108/EC (machine directive)
✔ Complies with the "electromagnetic compatibility" directive 89/336/EEC (EMC) and 92/31/EEC and EN 55011
✔ Connection to a standard electrical network whose voltages meet the international standard IEC
